SW-BA M6

S.S. Light Duty Stone Back Anchor / 輕便安裝型石背螺絲

輕便安裝型石背螺絲
S.S. Light Duty Stone Back Anchor [SW-BA M6]

Concepts and ideas : (Suitable for indoor installation)

Consume lesser natural stone, reduce weight and save the cost, in order to demonstrate the same effect. The pullout force have more strength and stable.
Strengthen the fixing structure of the stone wet-installation.
Anti-fire and anti-vibration.

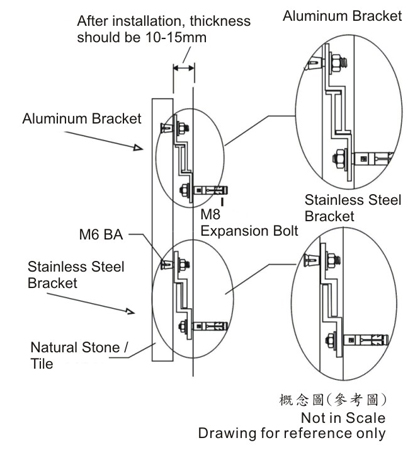

Material: Natural Stone

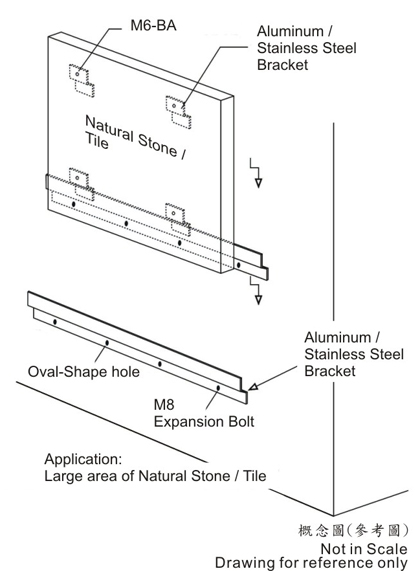

Application:Large area of Natural Stone / Tile.
Size: As shown on dwg or tailor made base on request

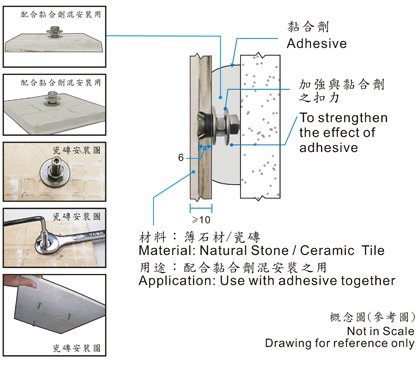

Material: Natural Stone / Ceramic Tile
Application: Use with adhesive together

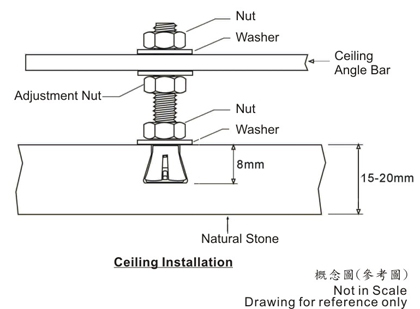

Material: Natural Stone
Application: Ceiling Installation Program

SW-BA M6

Stone Back Anchor Drill Head
(For M6)

PDF Format

Catalogue Download:

Please Right Click
and click “Save Link As”

SW-BA M6: Material : S.S.316

H (mm) Manufacturer's Recommended Stone Panel thinkness	≥ 15
D (mm) Drill hole diameter	12
Do (mm) Hole Base diameter	13
Ho (mm) Manufacturer’s recommended drill hole depth	7.5
Bmax (mm) Maxium Thickness of installation material	15
L (mm) Anchor total length (standard)	30
Advance Order
L (mm) Anchor total length (shortest)	20
L (mm) Anchor total length (longest)	80

Should there be any queries, please feel free to contact us.
