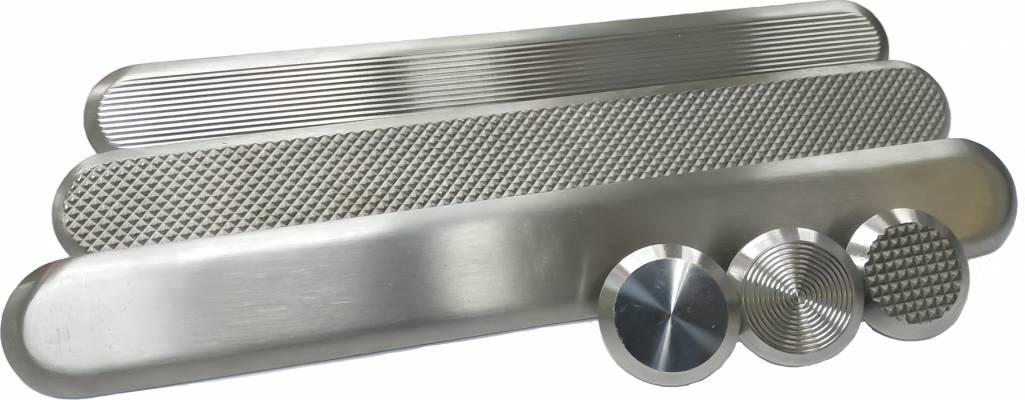

SW-TB/TS S.S. Tactile System
SW-TB/TS 不鏽鋼導行裝置

(Material: Stainless steel 304/316)

  • Suitable for various range of applications, such as shopping mall, hotel, school, hospital or any public area
    適用於各種類型的地方,如購物中心、酒店、學校、醫院及任何公共地方
  • Easy and convenient installation
    安裝方便容易
  • High durability
    高耐用性
  • Could be tailor made to meet the customers needs
    能按客戶要求訂製所需尺寸

For Ordering and Inquiries, please contact us.

Basic Information 基本資訊

According to Buildings Department (BD) Barrier Free Access 2008, certain types of buildings such as hospital, shopping mall, school, sports center, cinema, etc. are required to provide access routes inside the buildings for persons with a disability to enter, move within and leave a building to reach the accessible facilities.
根據屋宇署(BD)發出的《設計手冊︰暢通無阻的通道2008》,規定某類型的建築物,如醫院、購物中心、學校、體育中心、戲院等,需為殘疾人士提供一條容易辨別、不間斷、相對平坦、無障礙,以及無危險的路徑,以便他們進出建築物、在建築物內活動,以及前往任何暢通易達的設施。

Three kinds of tactile tiles/blocks as shown in below are commonly used in constructing a tactile guide path:
以下圖示常用作建造觸覺引路帶的三種觸覺磚/塊︰

For more government’s requirements, please refer to Building Department 「Design Manual – Barrier Free Access 2008」

更多政府相關的要求,請參考屋宇署《設計手冊︰暢通無阻的通道2008》中文版

SW-TB/TS S.S. Tactile System are one of the components to construct the access routes

新和SW-TB/TS 不鏽鋼導行裝置均是建造觸覺引路帶的標準尺寸部件

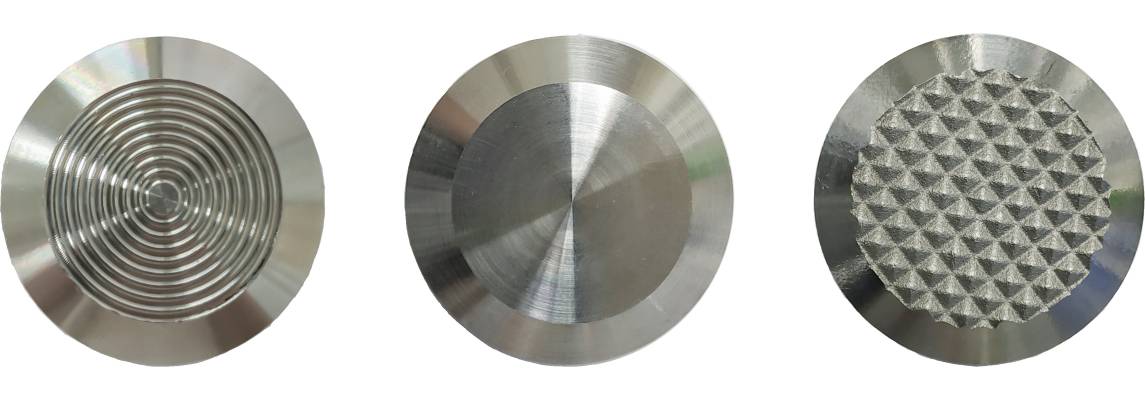

Model: SW-TB-O
Outer Diameter: 35mm
Inner Diameter: 25mm/28mm
Height: 5mm

Model: SW-TB-P
Outer Diameter: 35mm
Inner Diameter: 26mm
Height: 5mm

Model: SW-TB-R
Outer Diameter: 35mm
Inner Diameter: 25mm/28mm
Height: 5mm

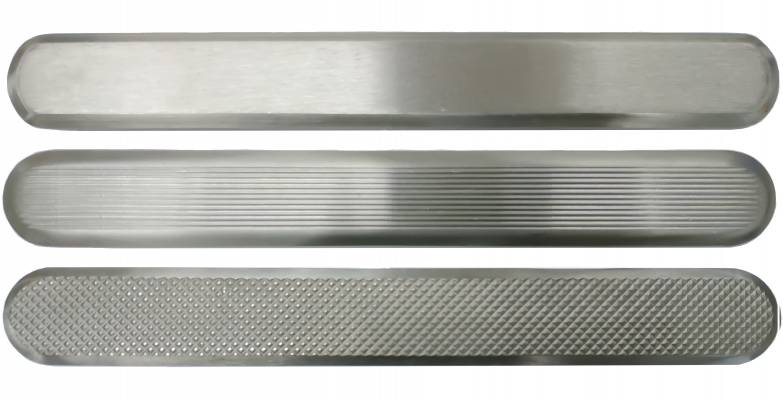

Model: SW-TS-O
Wide: 35mm
Length: 280mm
Height: 5mm

Model: SW-TS-R
Wide: 35mm
Length: 280mm
Height: 5mm

Model: SW-TS-P
Wide: 35mm
Length: 280mm
Height: 5mm

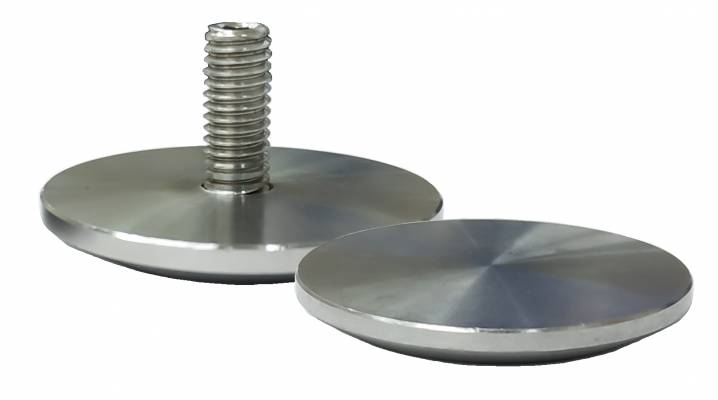

Customers can choose the option of 'with leg' or 'without leg' for all of the above models
以上款式均有提供有腳或無腳款供客人選擇

SUNWAY also provide tactile bolts with 23mm outer diameter

For any other tailor-made tactile strips / tactile bolts, please contact us and order in advance

新和另有提供23mm外徑導行釘

如需訂製導行條/導行釘,請聯絡我們並預先訂購
