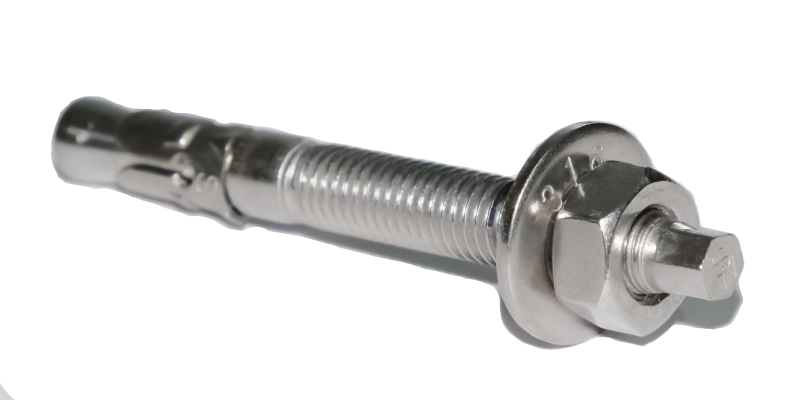

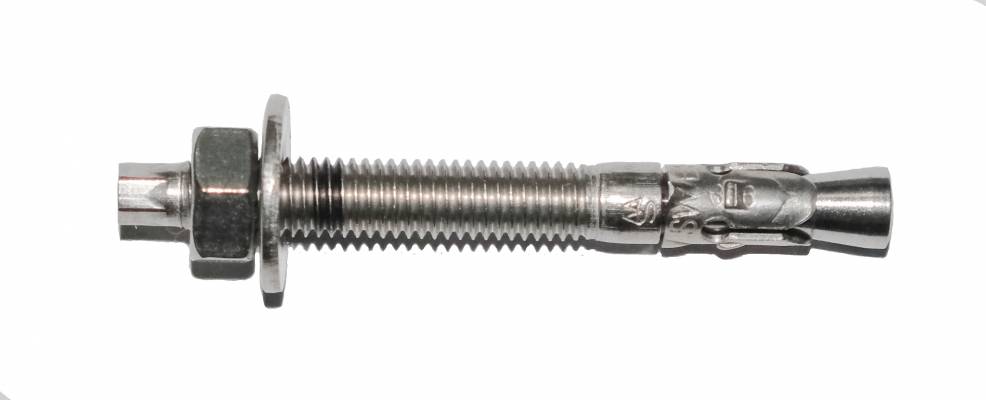

SUNWAY SW-E series stainless steel expansion bolt
SW-E系列不鏽鋼拉爆螺絲
(Material: Stainless steel grade A2/A4)
- Efficient torque-controlled expansion anchor
高效能拉爆螺絲 - Suitable for C20/25 to C50/60 cracked and non-cracked concrete
適用於由C20/25 至 C50/60 裂紋與非裂紋混凝土 - Compliance Tests Standard: ETAG 001, BS5080: Part 1&2
已依照ETAG 001 及BS5080 Part 1&2 的測試標準進行測試 - Applicable for Building Department, Architectural Services Department and Housing Department approved projects
適用於需經屋宇署、建築署及房屋署審批項目
A wide range of applications :
- Steel Channel
- Stone Panel
- Wooden Structure
- Curtain Wall
- Mechanical Equipment
For Ordering and Inquiries, please contact
For Technical Assistance, please contact

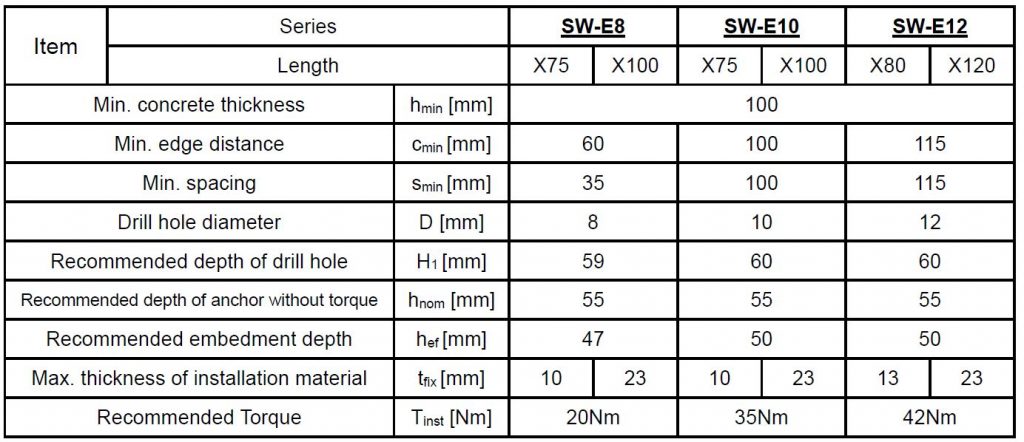

Basic Information 基本資料

Slot hole/Hex. Head Design 一字坑/六角頭設計
During the process of tightening, the expansion bolt may have risk of self-rotation problem if the quality of drill hole is not stable.
Therefore, resistance of the bolt will be influenced.
在收緊螺絲時, 如鑽孔質素不穩定, 螺絲有機會出現自轉情況, 影響其表現。
The design of slot hole/ hexagon head design can effectively assist to fix the bolts when tightening,
problem of self-rotation will be avoided.
一字坑或六角頭設計能在收緊時有助穩定螺絲, 避免自轉情況。

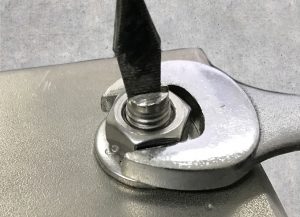

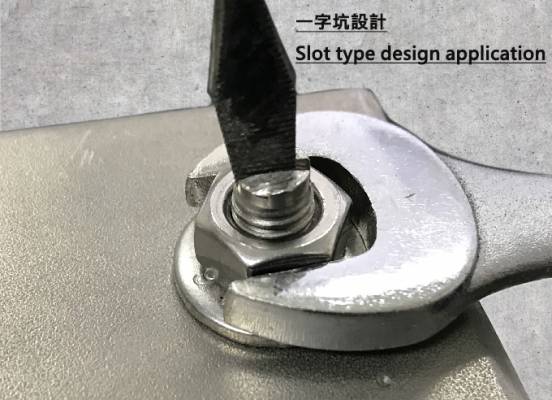

Slot hole design 一字坑設計 (適用於SW-E10 及SW-E12)

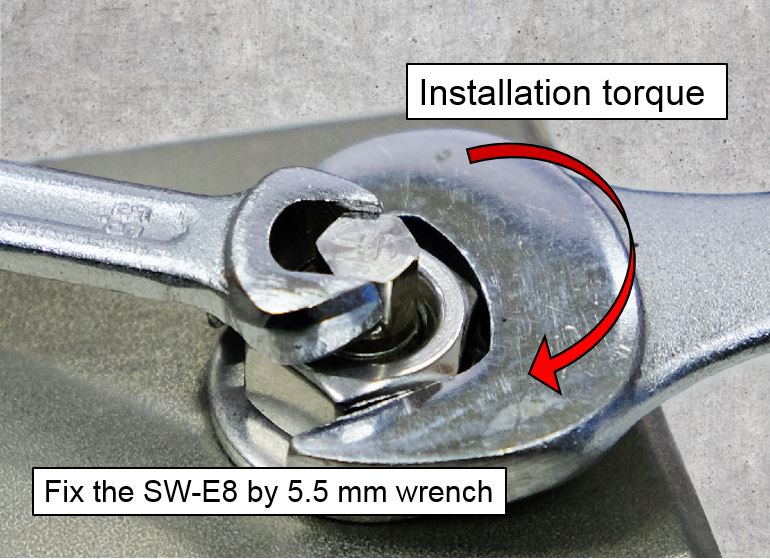

Hexagon head design 六角頭設計(適用於SW-E8)

- Laundry rods project in Kowloon East, Kowloon West and Sai Kung Region’s public housing estates (Housing Department approved)
九龍東、九龍西及西貢區公共屋村更換晾衣架項目 (房屋署審批) - West Kowloon Law Courts Building (ASD approved)
西九龍法院大樓 (建築署審批) - Queen Elizabeth Hospital (ASD approved)
伊利沙伯醫院 (建築署審批) - Tseung Kwan O – The Wings (BD approved)
將軍澳天晉 (屋宇署審批) - Goldin Financial Global Centre
九龍灣高銀國際金融中心 - 105 Kam Sheung Road
錦田錦上路105號 - Tsuen Wan West(TW5)Bayside Development
荃灣西站(五區)灣畔發展項目 - 41 Island Road
香島道41號 - 90 REPULSE BAY ROAD
淺水灣道90號 - 45 Tai Tam Road
大潭道45號 - Grand Riviera, Sham Tseng
金臻, 深井 - South Bay Road 20, Repulse Bay
淺水灣南灣道20號 - Parc Inverness, Kowloon Tong
賢文禮士 - Fuk Chak Street, Tai Kok Tsui
大角咀福澤街 - St. Pauls Hospital
聖保祿醫院 - La Maison De La Salle
喇沙匯 - MOKO
旺角新世紀廣場 - TPTL 200 & 201 Pak Shek Kok
大埔白石角 - Double Cove, Wu Kai Sha
迎海, 烏溪沙
- SW-E8 ETAG 001 Cracked Cocrete Test Report (Please contact us)
- SW-E8 BS5080 Shear Test (Cracked, C20-C30)
- SW-E8 BS5080 Tensile Test (Cracked, C20-C30)
- SW-E10 BS5080 Shear Test (Non-cracked, C20-C40)
- SW-E10 BS5080 Tensile Test (Non-cracked, C20-C40)
- SW-E12 BS5080 Shear Test (Non-cracked, C20-C30)
- SW-E12 BS5080 Tensile Test (Non-cracked, C20-C30)
- Related Stainless Steel Chemical Test Reports (Please contact us)
