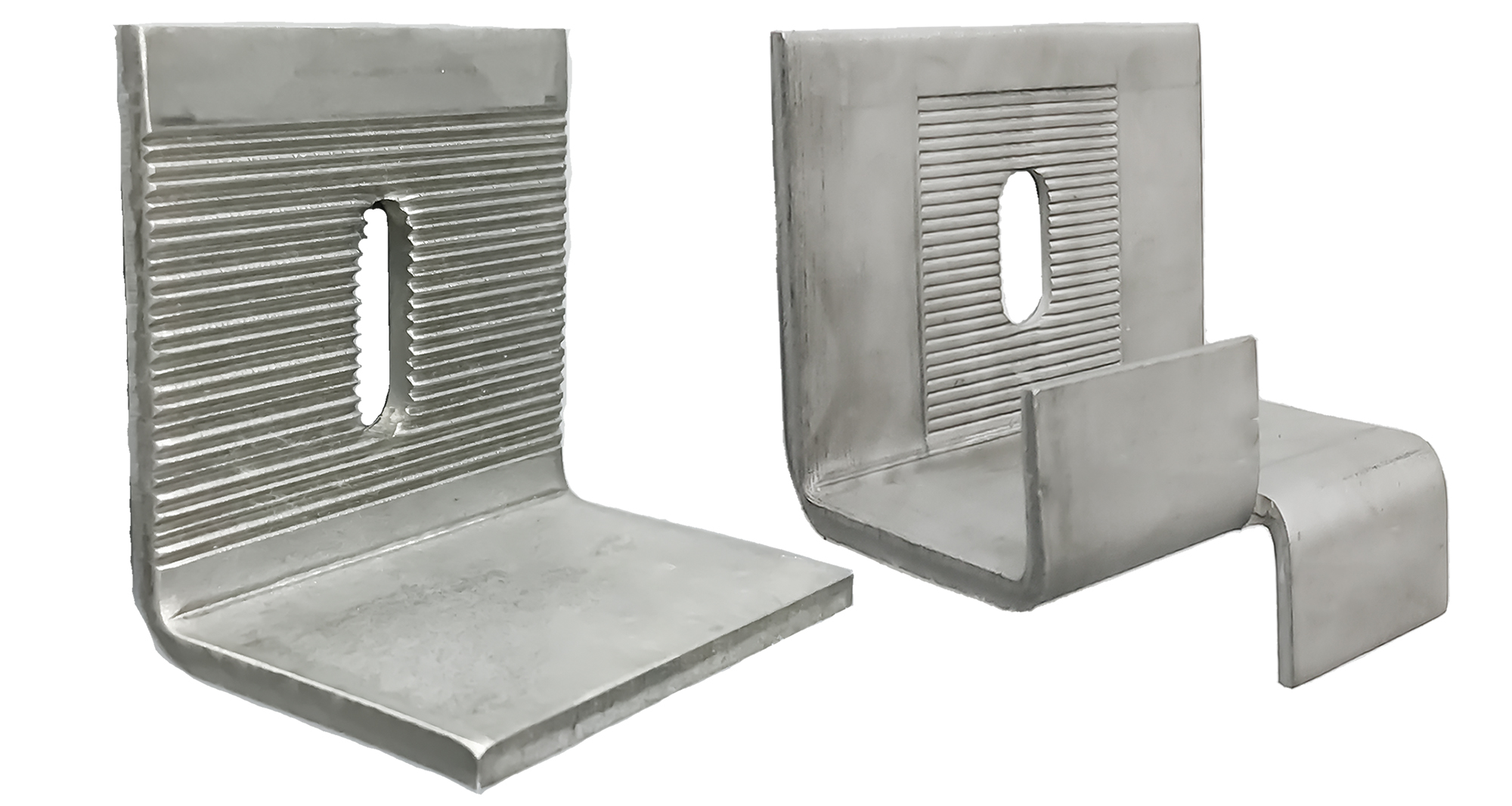

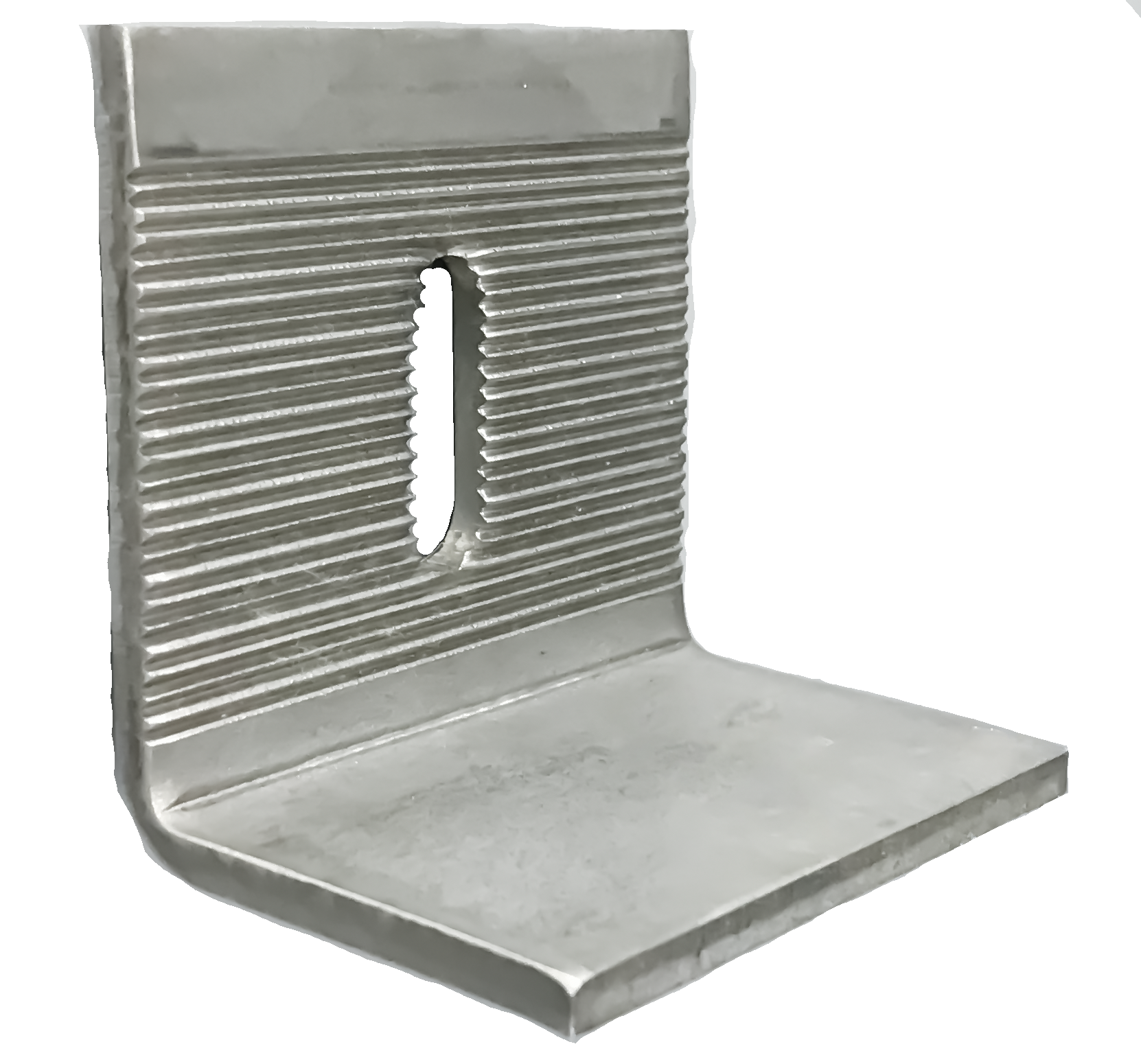

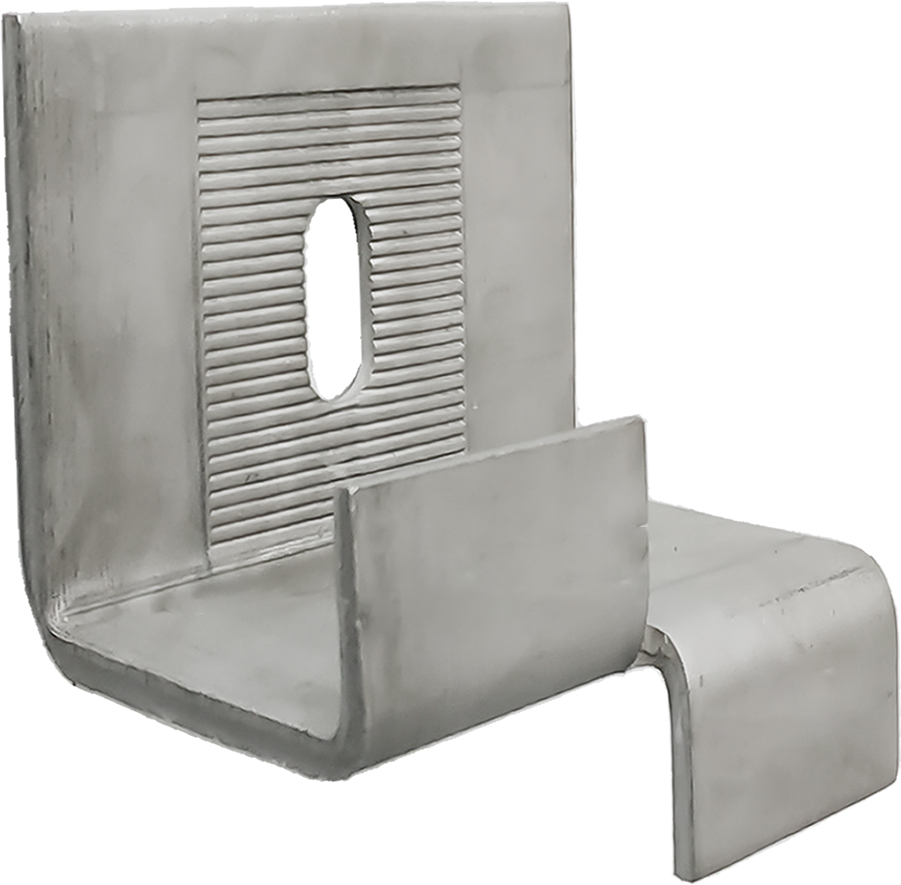

SW-A2 Anti-Slip Bracket
新和不鏽鋼防滑碼片 (SW-A2)

(Material: Stainless steel 304/316, Thickness: 3mm – 8mm)

  • A very convenient and safe design for the brackets with slot hole
    專為鵝蛋孔碼片而設的設計,非常便利而且安全
  • Has already included in Architectural Services Department’s List of Acceptable Materials (Ref. No. : 1948P)
    已納入建築署(ASD)的認可使用物料清單 (參考編號 : 1948P)

Advantages 優勢:

  • Shorter the installation time 能縮短安裝時間
  • SW-A2 anti-slip bracket could bear 3 times as much loading as the normal brackets with plain washers (acc. to Poly University test report)
    SW-A2 防滑碼片的負載力是普通碼片的3倍 (根據理工大學測試報告)

For Ordering and Inquiries, please contact us.

Basic Information 基本資料

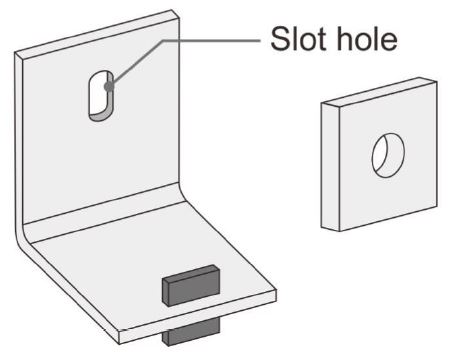

Slot hole design could increase the flexibility of brackets installation in real construction sites.
(e.g. avoid colliding with reinforcing bars)

鵝蛋孔設計能增加工人在實際工地安裝碼片時的靈活性
(例如, 能避開混凝土中的鋼筋)

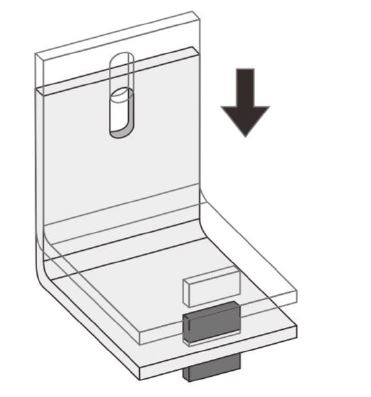

Bracket without Anti-Slip design 沒有防滑設計的碼片

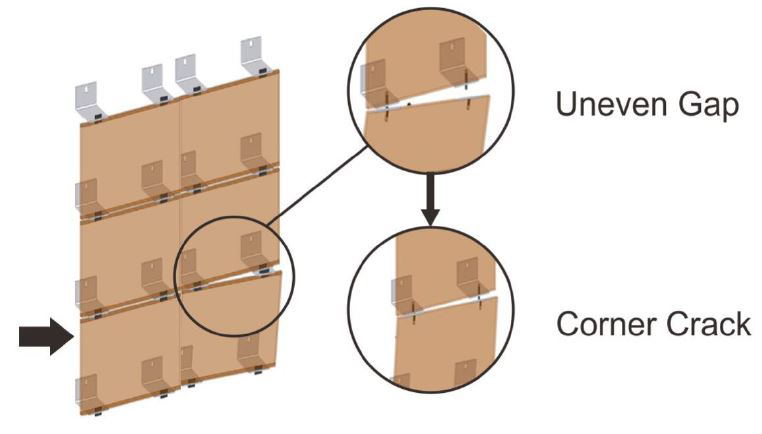

In general, during the installation process of the bracket with slot hoe, the plain washer should be fixed on the bracket by welding. If not, the weight of stone panels may possibly cause the slip of the brackets. As a result, stone panels will have the problem of uneven gap or crack

在正常鵝蛋孔碼片的安裝過程中,普通平滑介子需焊接在碼片上作固定。如不焊接,石板材的重量會有機會使碼片滑落,結果導致板材之間出現缺口及裂縫

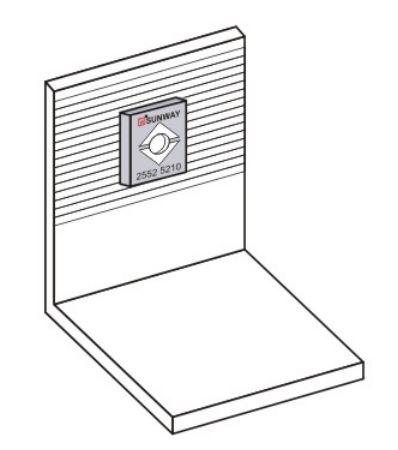

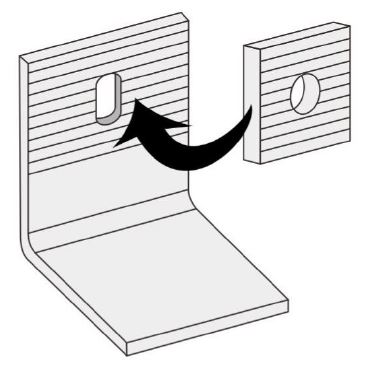

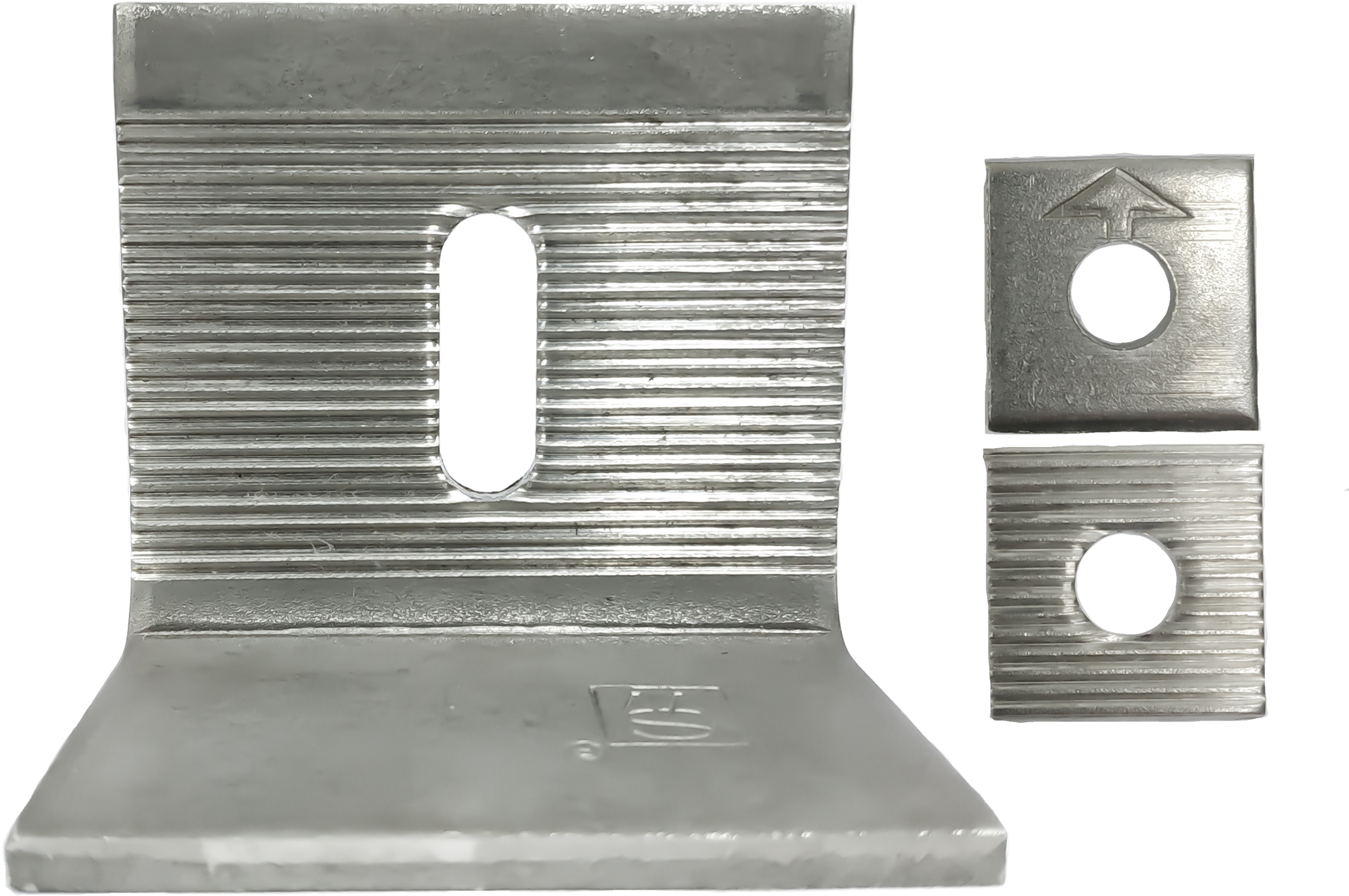

SUNWAY SW-A2 Anti-Slip Bracket 新和SW-A2 防滑碼片

Advantages 優勢:

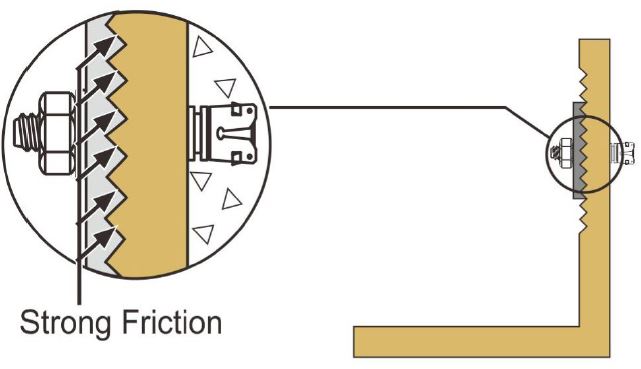

– Stronger friction between the bracket and washer, effectively prevent bracket’s slip
   大大增強碼片與介子之間的磨擦力,有效防止碼片滑落
– No welding is needed, installation could be much faster and convenient
  無需進行燒焊工序,安裝更方便快捷

We are the first designer and manufacturer of providing Stainless Steel Anti-Slip Bracket for building facade in HK, which is already used in the stone panel project as listed below:
本司是香港首間提供防滑碼片予石材幕牆工程的供應商,物料已供應予以下工程項目使用︰

  • First/Second Street Project at Mid-Levels West, Hong Kong
    西環第一街 及第二街
  • Cheung Yip Street, Kowloon Bay Project
    九龍灣祥業街項目
  • Cyberport
    數碼港
  • Club Lusitano
    西洋會所
  • Dargon Air VIP Lounge(HK International Airport)
    港龍航空貴賓室(香港國際機場)
  • H.K. Electric Headquarters (Kennedy Road)
    港燈總部(堅尼地道)
  • 51 Plantation Road
    種植道51號
  • Constellation Cove, Tai Po
    大埔滌濤山
  • 18 Farm Road
    農圃道18號
  • Miu Fat Buddhist Monastery
    妙法寺
  • One Silver Sea
    一號銀海
  • Manhattan Hill
    曼克頓山
  • Cheng Yu Tung Building, CUHK
    中文大學鄭裕彤樓
  • International Commerce Centre (ICC)
    九龍站7期環球貿易廣場
