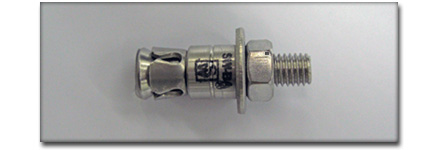

SW-BA M8x40
S.S. Stone Back Anchor
/ 不銹鋼石背螺絲
不銹鋼石背螺絲
S.S. Stone Back Anchor |
|
傳統螺絲及碼片安裝於石材邊緣，石材中央抵抗力可能不足，使中央因長期受壓而隆起。
Traditional anchor bolt & bracket install on the edge of the panel. The centre of panel maybe bulge because of the insufficient renitent and long term pressured. |
|
| 加配石背螺絲安裝於石材底部，能有效抵擋壓力，穩定石材表面。 |
| Install the stone back anchor on the bottom of the panel can efficient withstand the pressure and keep the facade panel stable. |
| |
不銹鋼石背螺絲
S.S. Stone Back Anchor |
Please click here to view the  test report.
(To require full set test report, please contact us.)
|
|
Undercut hole design, minimize the expansion
pressure inside the stone panel. |
|
|
|
 |
 |
|
|
|
| |
|
|
|
|
 |
SW-BA M8x40:
Material : S.S. 304/ S.S.316 |
 |
| H (mm) Manufacturer's Recommended
Stone Panel thinkness |
30 |
D (mm) Drill hole diameter |
13 |
Do
(mm) Hole Base diameter |
15.5 |
Ho (mm) Manufacturer’s recommended
drill hole depth |
21 |
Bmax (mm) Maxium Thickness
of
installation material |
10 |
L (mm) Anchor total length |
40 |
|
|
|
 |
|
