新和不鏽鋼碼片生產已取得 ISO 9001 認證
Production of Stainless Steel Bracket
has been accredited the standard of ISO 9001
|
| |
 |
| |
Standard: ISO9001:2015
Cert. no. : Q0297 |
|
ISO 9001 證書樣本下載
ISO 9001 Certificate Download
如需正本，請聯絡我們。
Please contact us if you need the true copy |
 |

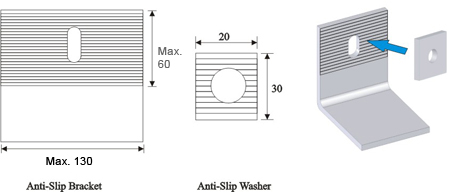

 SW-A2
Anti-Slip
Bracket for Stone Facade Installation

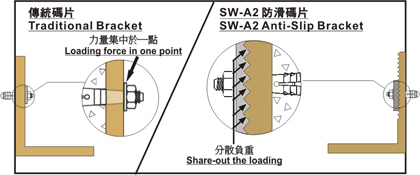

| Traditional Bracket |
|
Bracket need to punch
a slot hole for minor adjustment |
|

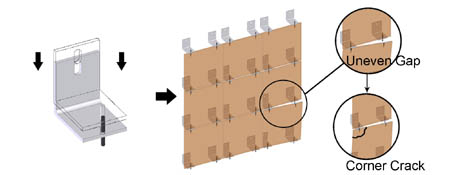

But the stacking effect from
the stone panel may move the bracket after
a period of time. The stone panel will have
uneven gap or crack.
|
| SW-A2
Anti-Slip Bracket - For Stone
Facade Installation |
|
|
Anti-Slip
bracket (SW-A2) design can minimize
the problem of different torque workmanship. |
新和防滑碼片 (SW-A2) 設計可減少不同工人之扭距不一之問題 |
Anti-slip
bracket fixing system for facade installation,
Improve the factor of safety |
|
|
|
|
|
 |
| |
SW-A2
SW-A2

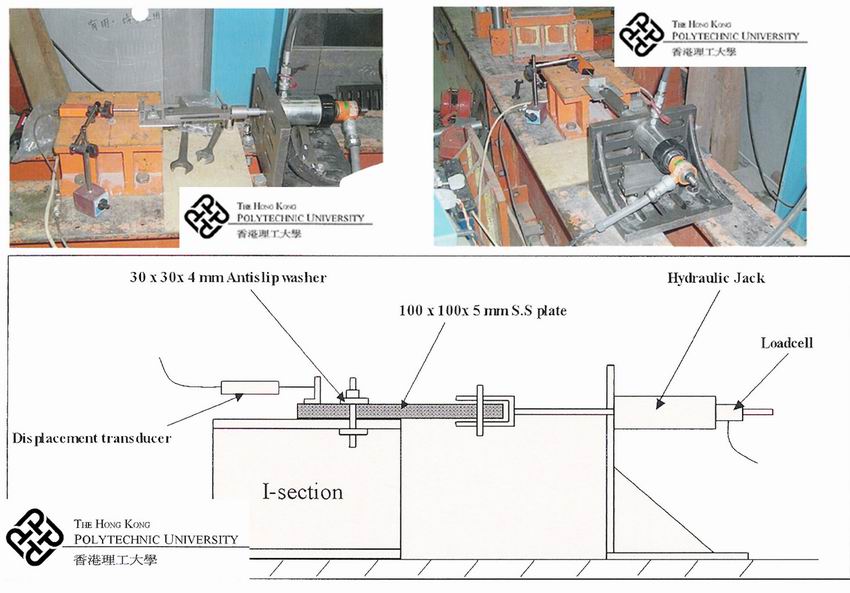

Anti-Slip Bracket Test Report:
| SW-A2
Anti-Slip Bracket Test Report: |

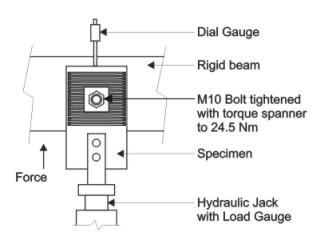

Test :
To determine the max. load
capacity before slipping taking place
Ref. No. :
015/2001/YMC(Polytechnic
University)
S-AS-99-08(Sunway)
| Samples : |
| 1) |
100 x 100 x 5mm |
| |
S.S. plate
with |
| |
30 x 30 x 4mm |
| |
original washer |
| |
|
| 2) |
100 x 100 x 5mm |
| |
S.S. plate with |
| |
30x30x4mm |
| |
SUNWAY
Anti-Slip Washer - SW-A2 |
|
|
The Hong Kong Polytechnic University. |
| Result : |
| S.S. Plate without anti-slip
washer |
| Sample Number |
Max. Load before slide |
| 1 |
372kg |
| 2 |
367kg |
| 3 |
378kg |
| S.S. Plate with Sunway
SW-A2 |
| Sample Number |
Max. Load before slide |
| 1 |
1539kg |
| 2 |
1502kg |
| 3 |
1510kg |
Conclusion:
The SW-A2 Anti-Slip Bracket can bear 300%
more load as the without antislip washer.
|
|
| |
|
 |
| Product
Specification: |
| SW-A2 |
| Material |
S.S. 304 / S.S.316 |
| Size |
Upon Request
Can tailor made different size |
| |
Our
SW-A2 Anti-Slip Bracket has already
included in
Architectural Services Department's
List of Acceptable Materials |
| ASD Reference No. : |
 1948P |
| |
|
|
| |
|
 |
 |
| We are the first designer
and manufacturer of providing Stainless Steel
Anti-Slip Bracket for
building facade in HK, which is alreadly used
in the stone panel project as listed below: |
| -
First/Second Street Project at Mid-Levels West, Hong Kong |
| -
西環第一街 及第二街 |
| -Cheung Yip Street, Kowloon Bay Project |
| - 九龍灣祥業街項目 |
-Cyberport at Telegraph
Bay,Pok Fu Lam |
| - 數碼港 |
-16 Ice House Street |
| -雪廠街16號 |
| -Dargon Air VIP Lounge(HK International Airport) |
| - 港龍航空貴賓室(香港國際機場) |
| -H.K. Electric Headquarters (Kennedy Road) |
| - 港燈總部(堅尼地道) |
| - 51 Plantation Road |
| - 種植道51號 |
| -150 Tai Po Kau |
| - 大埔滌濤山 |
| -18 Farm Road |
| - 農圃道18號 |
| -Miu Fat Buddist |
| - 妙法寺 |
| -One Silver Sea |
| - 一號銀海 |
| -Manhattan |
| - 曼克頓山 |
| - Teaching Hotel of CUHK |
| - 中文大學酒店教學大樓 |
| - International Commerce Centre (ICC) |
| - 九龍站7期環球貿易廣場 |
| |
| |
|
| |
|
