Standard S.S. Bracket
標準不鏽鋼碼片

Material 物料: Stainless steel 304/316 不鏽鋼 304/316
Thickness 厚度: 3mm – 8mm

SUNWAY has more than 30 years experience specialized in the production
of stainless steel bracket.  Different kinds of brackets could be tailor-made upon customers requests.
新和金屬製品廠有限公司有逾30年專門生產不鏽鋼碼片之經驗, 可按客戶的要求生產不同款式及尺寸的碼片.

Special Features 特點:

  • A very common and safe element for stone cladding installation
    安裝天然石材幕牆的常用配件, 堅固而穩妥
  • Capable to fix stone panels to different building substructure
    可把天然石板材有效固定在不同的建築底材
  • Strong mechanical resistance, in order to withstand the wind loads and stone panels weight
    強大的負載力, 可承受不同程度的風壓及石板材的自身重量
  • Immune to different forms of corrosion
    能抵抗不同形式的侵蝕

For Ordering and Inquiries, please contact us.

Basic Information 基本資訊

Stainless steel brackets are very important components in the structural fixing system of stone cladding construction.
They connect the stone panels and building substructure in order to withstand the stones weight and wind pressure,
so that the stone panels could be maintained in the specified positions.
不鏽鋼碼片是安裝天然石材幕牆時的重要結構固定部件. 碼片連接在石板材及建築底材之間, 強大的負載力使它能承受不同
程度的風壓及石板材的自身重量, 令石板材能穩妥地固定在牆身的特定位置

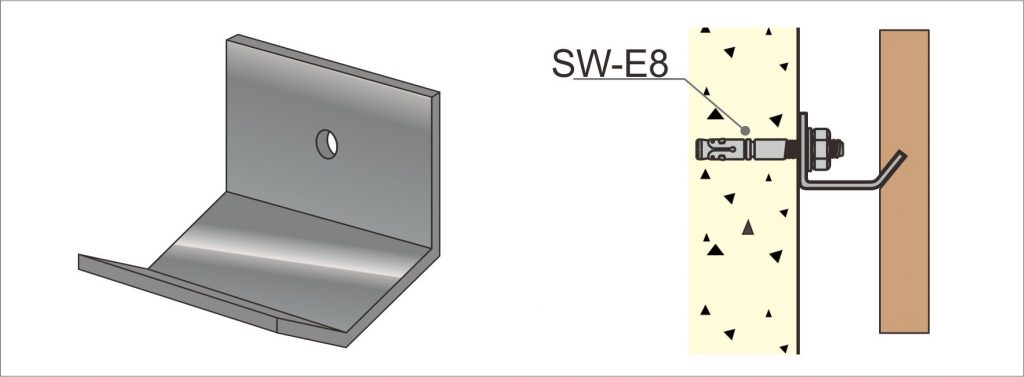

Example1. A stone panel fixed by kerf brackets
圖示1. 使用蝴蝶碼固定石板材

Traditional Pin-Bracket fxing

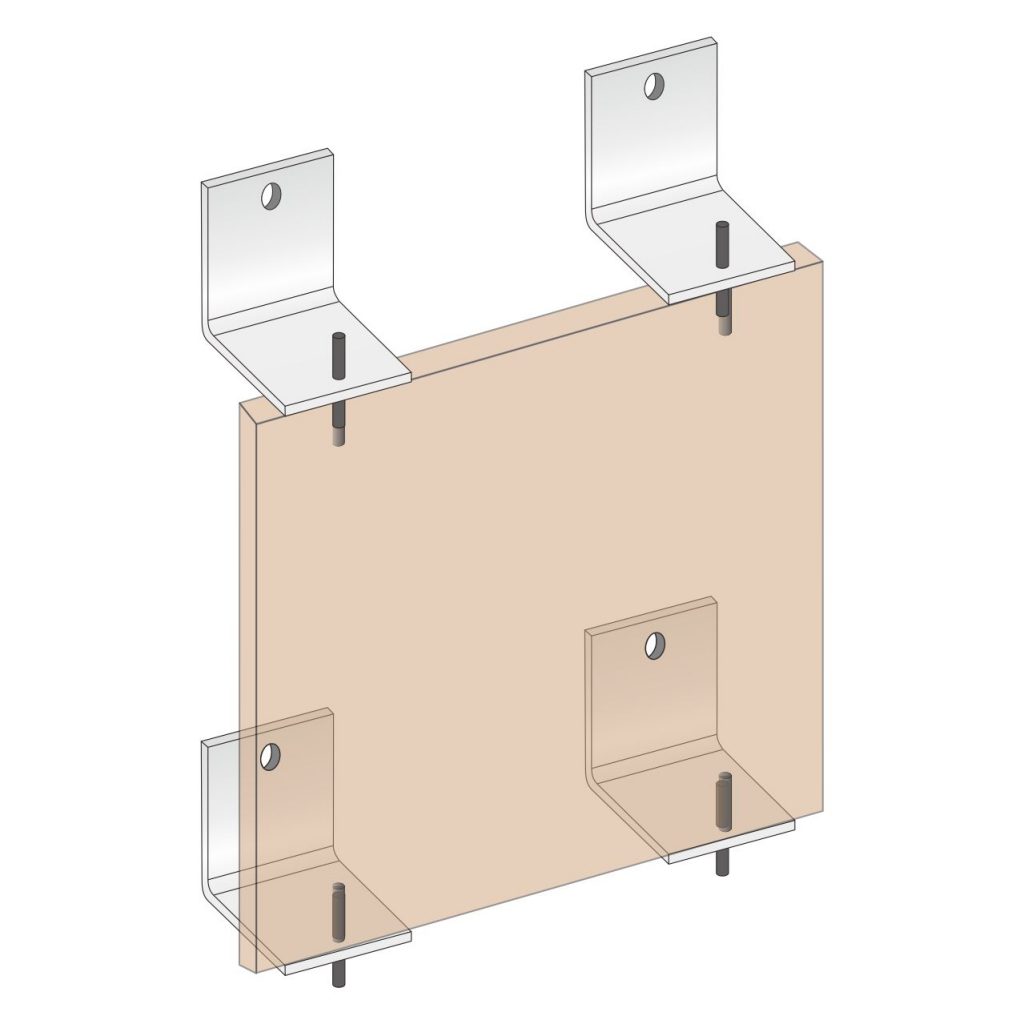

Example2. A stone panel fixed by pin brackets
圖示2. 使用針碼固定石板材

Application 應用

The following application samples are just for references.
以下的應用示範只供參考.

To ensure the safety, the whole bracket fixing system, including the size and type of bracket, the quantity of bracket will be used and etc., should be designed and gone through a precise structural calculation by chartered engineers or related authorities before using
為確保設計安全, 整個碼片固定系統 ( 包括碼片的款式及尺寸, 碼片使用的數量等) 正式安裝前須經專業工程師或其他具經驗人士進行嚴謹而精密的設計及結構力學的計算

Back Bracket 插碼

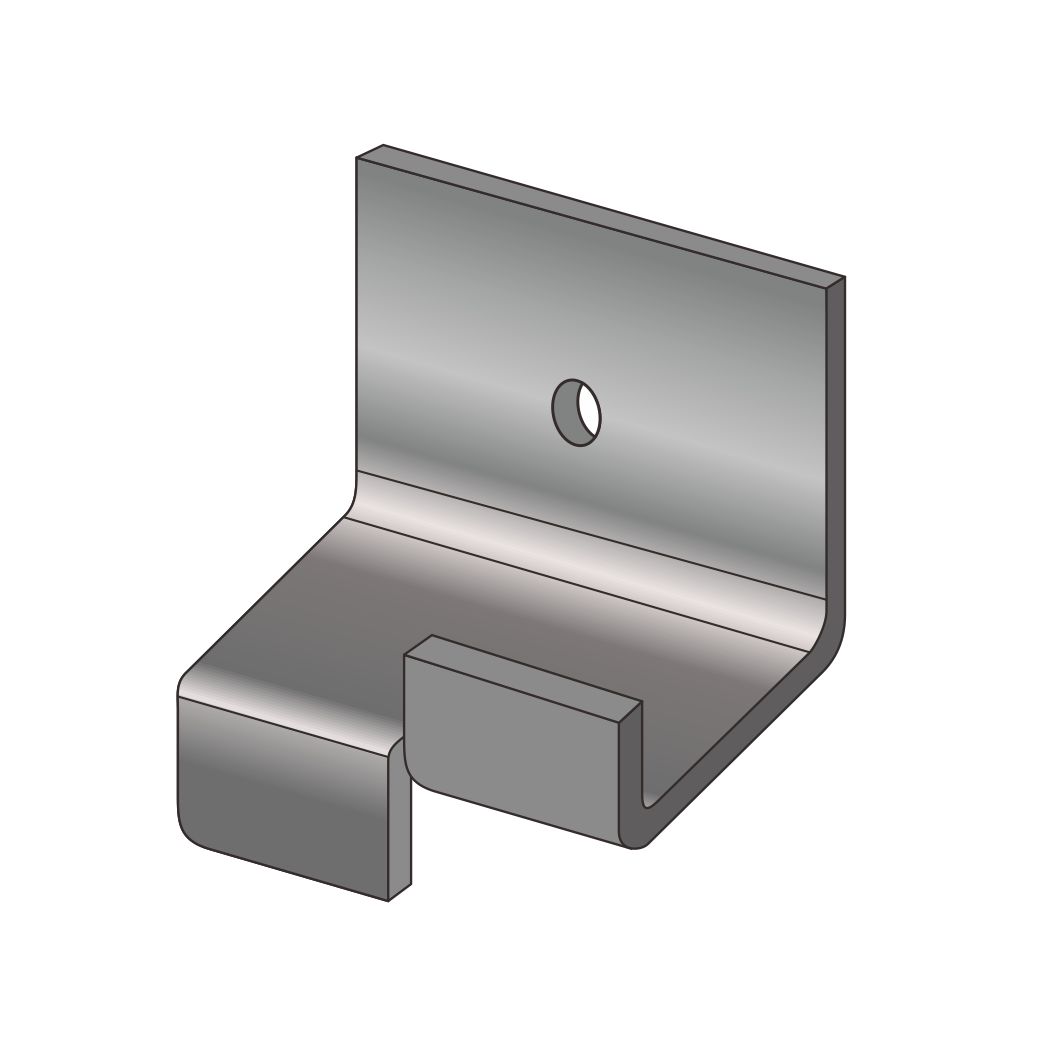

Kerf Bracket 蝴蝶碼 (燕子碼/魚尾碼)

Pin Bracket 針碼

Stone Back Bracket and J Bracket 背扣碼及托碼

  • Hong Kong Disneyland
    香港迪士尼樂園
  • Hong Kong International Airport
    香港國際機場
  • International Finance Centre (IFC)
    國際金融中心
  • Wynn Palace, Macau
    永利皇宮, 澳門
  • West Kowloon Law Courts Building
    西九法院大樓
  • Times Square
    時代廣場
  • Providence Bay, Tai Po
    大埔白石角天賦海灣
  • The Spectra, Yuen Long
    朗屏8號
  • The Arch, Kowloon Station
    凱旋門, 九龍站
  • Villa Esplanada
    青衣灝景灣


    For more job reference information, please contact us.
